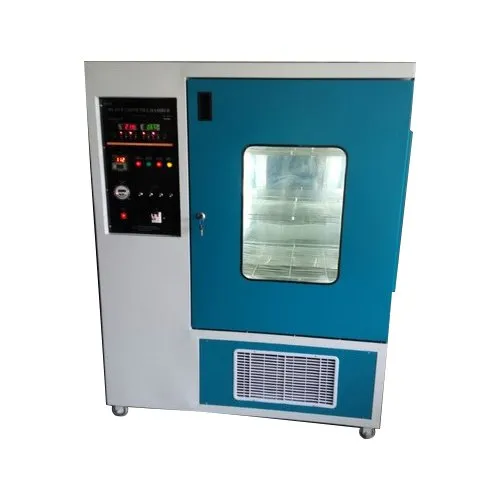

Plant Growth Chamber

Plant Growth Chamber

Voltage (in Volts) 220 - 230V
Material Stainless Steel
Temperature Range 5 - 60`C
Inner Dimensions 455 x 410 x 610mm
Chamber Capacity 4 Cubic Foot
Approx Capacity 112 Litres
Number of Shelves 2
Insulation Type Triple Walled
Humidity Range 55 - 90%

Introduction

Plant Growth Chamber is one of the most highly recommended product of VESCA Scientific Lab instruments. It provides wide range of benefits which is absolutely idle for environmental studies especially for flower and plant growth. Many area of plant research require the use of a controlled environment and with the help of this a plant’s response to different conditions can be monitored.

Its in built Standard propagation techniques can be helpful to speed up the growth cabinet as well as for achieving a higher success rate and apart form that micro propagation is being used for a growth cabinet which is essential for rooting the plantlets and adapting them to normal conditions.

This plant growth cabinet is ideal for all routine propagation and research applications. With a solid see thru double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature. For external door it has excellent quality magnetic has been used with packing door gasket. It’s unique User oriented designs of shelves will help you to adjust each space of shelves without facing any problem.

Properties

» For any forced air circulation at triple walled is backed by durable coaxial blower which also maintains optimum temperature uniformity and homogeneity. This instrument’s Foamed-in-Place PUF insulation is nothing but ensures thermal stability and above all it also reduces electrical energy consumption.

» Taking into account for easier portability it is mounted on caster wheels. You need not to worry about the safeness of this machine because its front double walled door is provided with an arrangement of lock and a key.

» Illumination lamp is fitted inside the chamber for easy visibility and also finned with tube evaporator that facilitates uniform and faster cooling effects. In any case of overheating our product has one Safety Thermostat and that’s not all Plant Growth Chamber is also fitted with electronic digital meter.

» For artificial daylight conditions, it has a fluorescent lamps/tubes account which illuminates the exterior part. It works on 220/230 Volts AC (50/60 Hz frequency).

Product description & Plant Growth Chamber specifications

Triple walled S.Steel (304 grade) Chamber with Air Circulating Fans, full view inner glass door, properly insulated. Digitally Controlled temp. Range 5°C to 60°C under normal Conditions & 15°C to 60°C, Accuracy ± 1°C when lights from both sides are ON. Humidity range 55% to 90% ± 3% RH supplied with 0-24 Hours Timer. CFC Free Refrigeration Supplied with 2 or 3 removable shelves.Workable on 220/230 volts AC.

Inner Dimensions (w x d x h) Chamber Capacity Approx. Capacity No. of Shelves
PGC-1 455x410x610 mm 4 Cu Ft. 112 Ltr 2 P.O.R
PGC-2 505x415x830 mm 6 Cu Ft. 170 Ltr 2 P.O.R
PGC-3 570x550x875 mm 10 Cu Ft. 280 Ltr 3 P.O.R
PGC-4 650x580x900 mm 12 Cu Ft. 340 Ltr 3 P.O.R
PGC-5 700x640x900 mm 15 Cu Ft. 420 Ltr 4 P.O.R
PGC-6 700x640x970 mm 16 Cu Ft. 450 Ltr 4 P.O.R
PGC-7 700x700x1100 mm 20 Cu Ft. 560 Ltr 4 P.O.R
